This automotive Rotary Potentiometer is a cost effective and durable Throttle Position Sensor, with a 0-5v Output.
This high-quality Magneti Marelli type sensor features a wiper arm mechanically linked to a moving part that remains in contact with a resistor. As the wiper moves across the resistor, the signal output adjusts, ensuring accurate throttle response.
Key Features:
- Operates using AT Power’s standard ‘T’ Shaft, with a clockwise orientation when viewed from the sensor’s mounting face.
- Sealed, spring return rotor
- Tin plated terminals
- Compatible with AT Power Throttle Bodies, ensuring seamless integration.
- Supplied with a 3-pin male mating connector kit for easy installation.

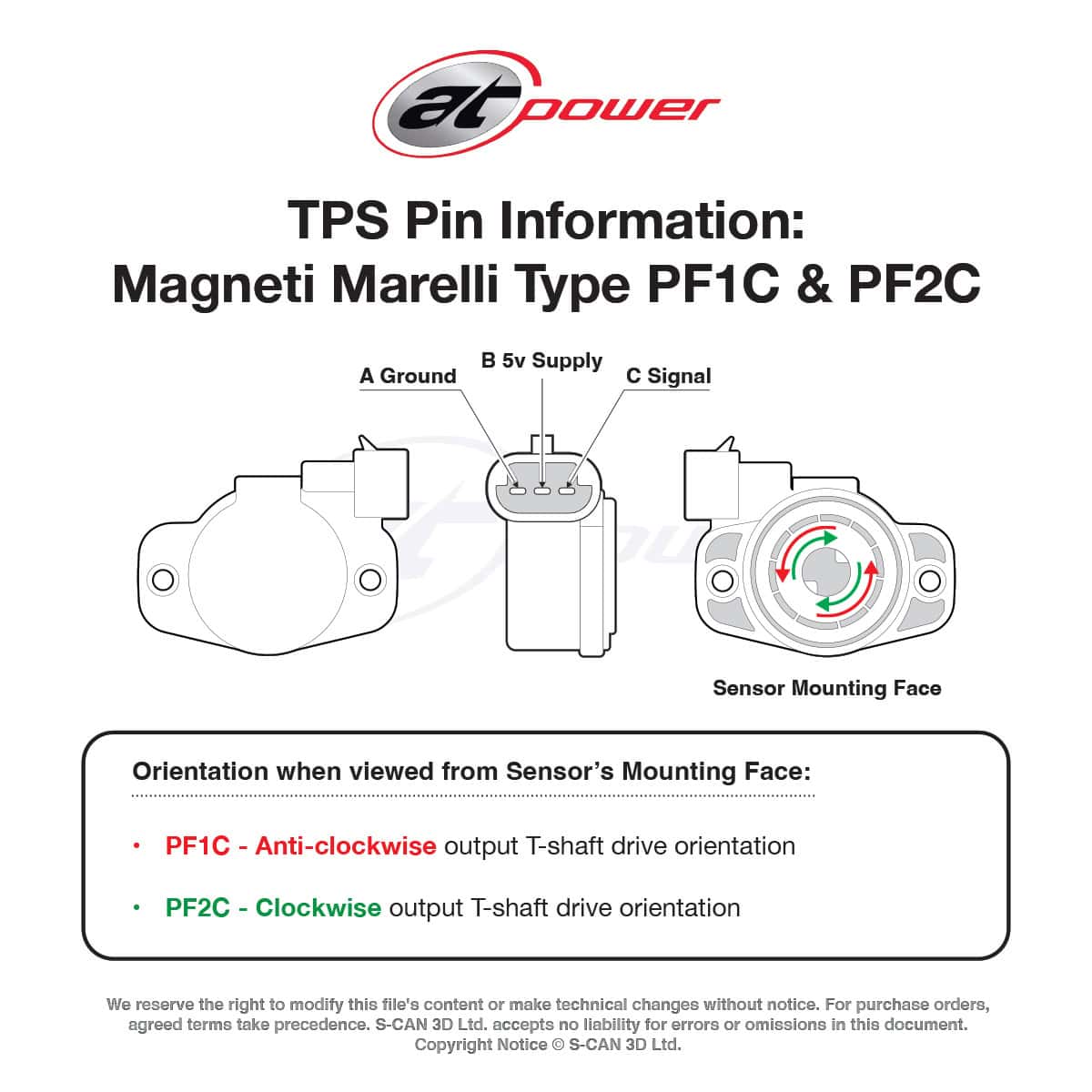

PF1C – 101-130-00013 – Output T-Shaft drive orientation is anti-clockwise when viewed from the sensor’s mounting face.
PF2C – 101-130-00014 – Output T-Shaft drive orientation is clockwise when viewed from the sensor’s mounting face.
Please refer to wiring information found in Documents Tab for installation.
Ideal for automotive enthusiasts and professionals, these rotary potentiometers ensure precise throttle position feedback for optimal engine performance. Whether you’re upgrading your throttle system or replacing existing sensors, these durable components are engineered for reliability and accuracy.
