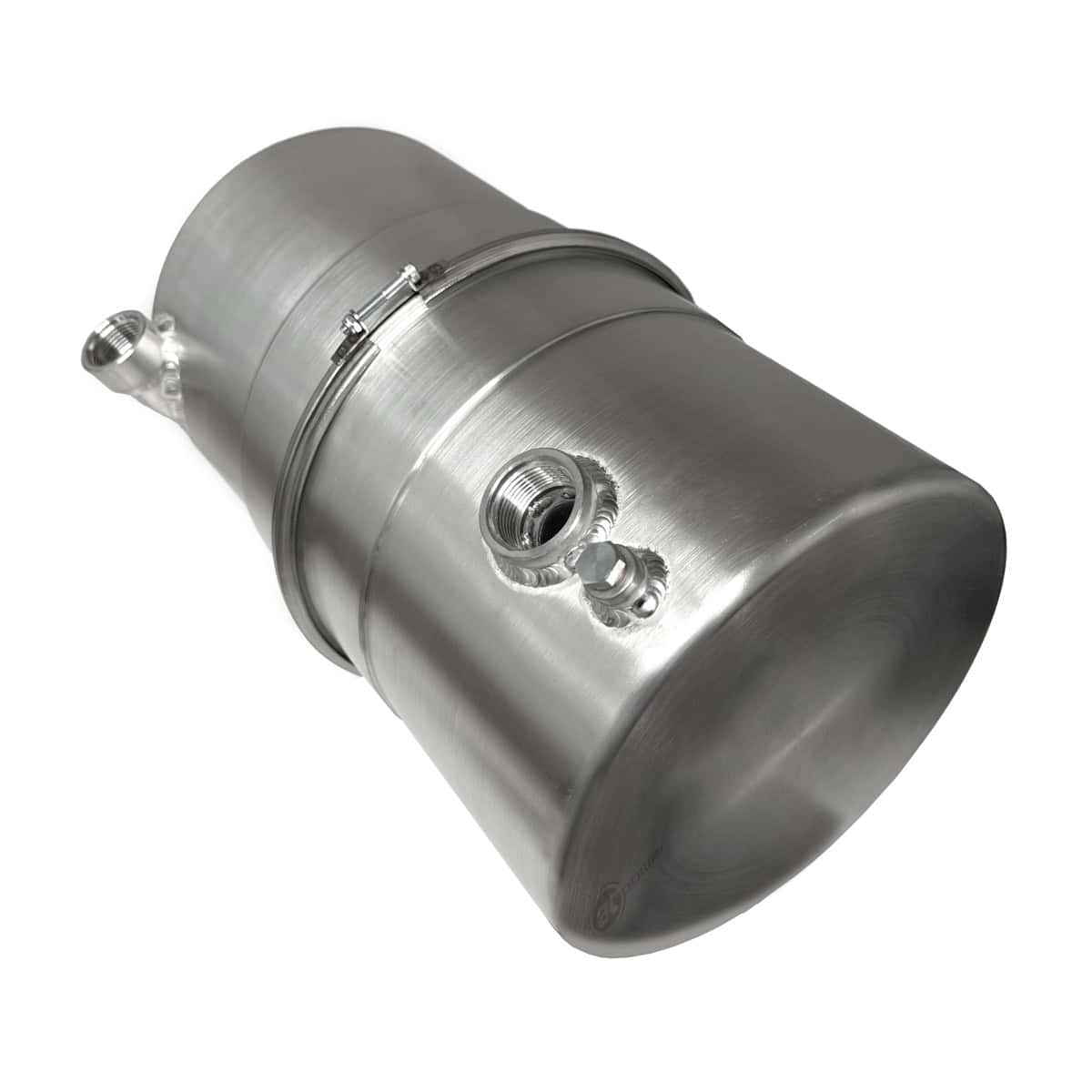

Spun Aluminium Motorsport Dry Sump Oil Tanks

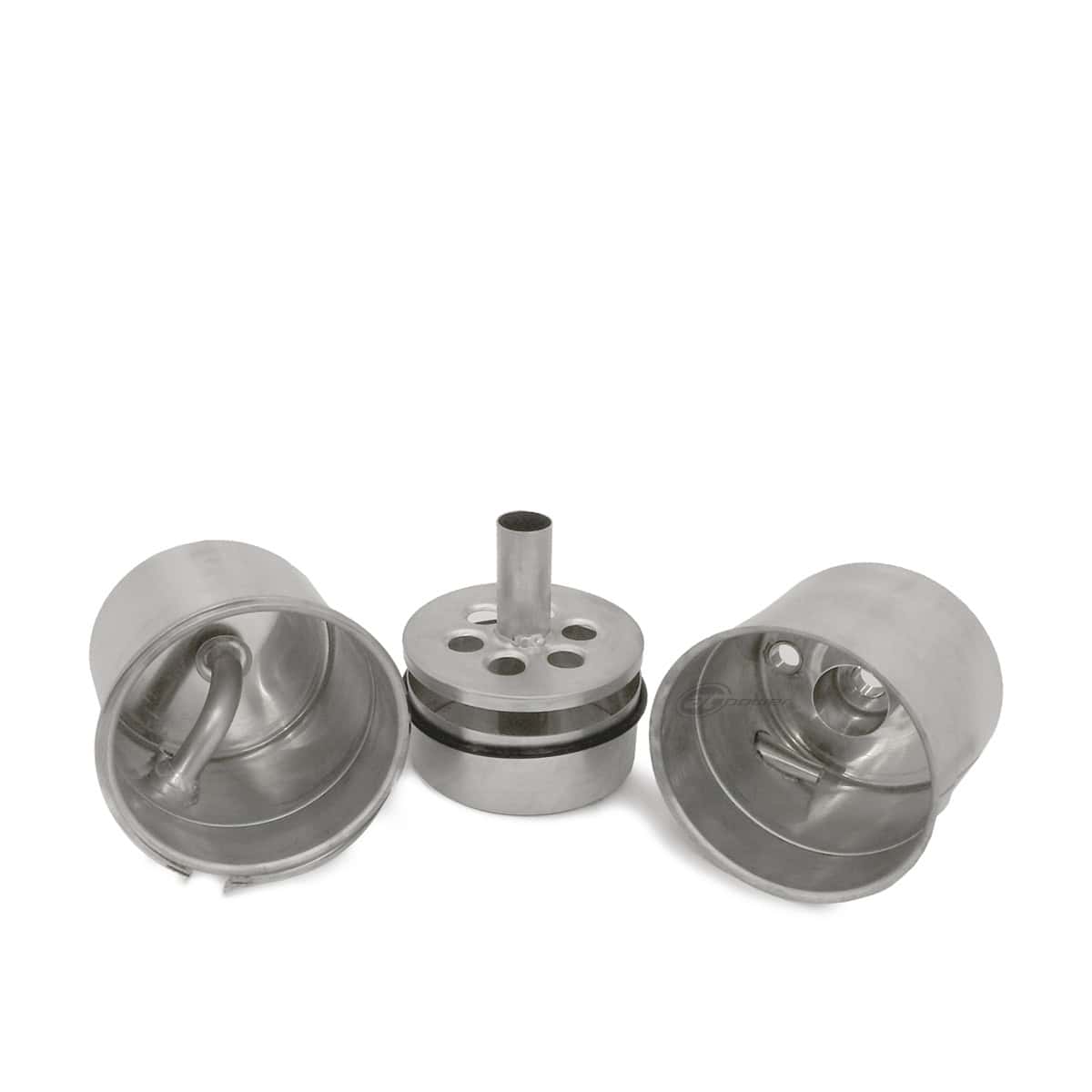

Optimise your racing performance with our high-quality Spun Aluminium Motorsport Dry Sump Oil Tanks, designed for maximum efficiency and ease of maintenance. Available in three sizes 5.0 litres, 7.0 litres, and 10.0 litres – each tank features a two-part construction with removable internal baffles for effortless cleaning.
Key Features:
- Quick Dismantling: The tanks can be disassembled in under a minute using an O-Ring joint and a specially designed V-band clamp, ensuring quick access for maintenance.

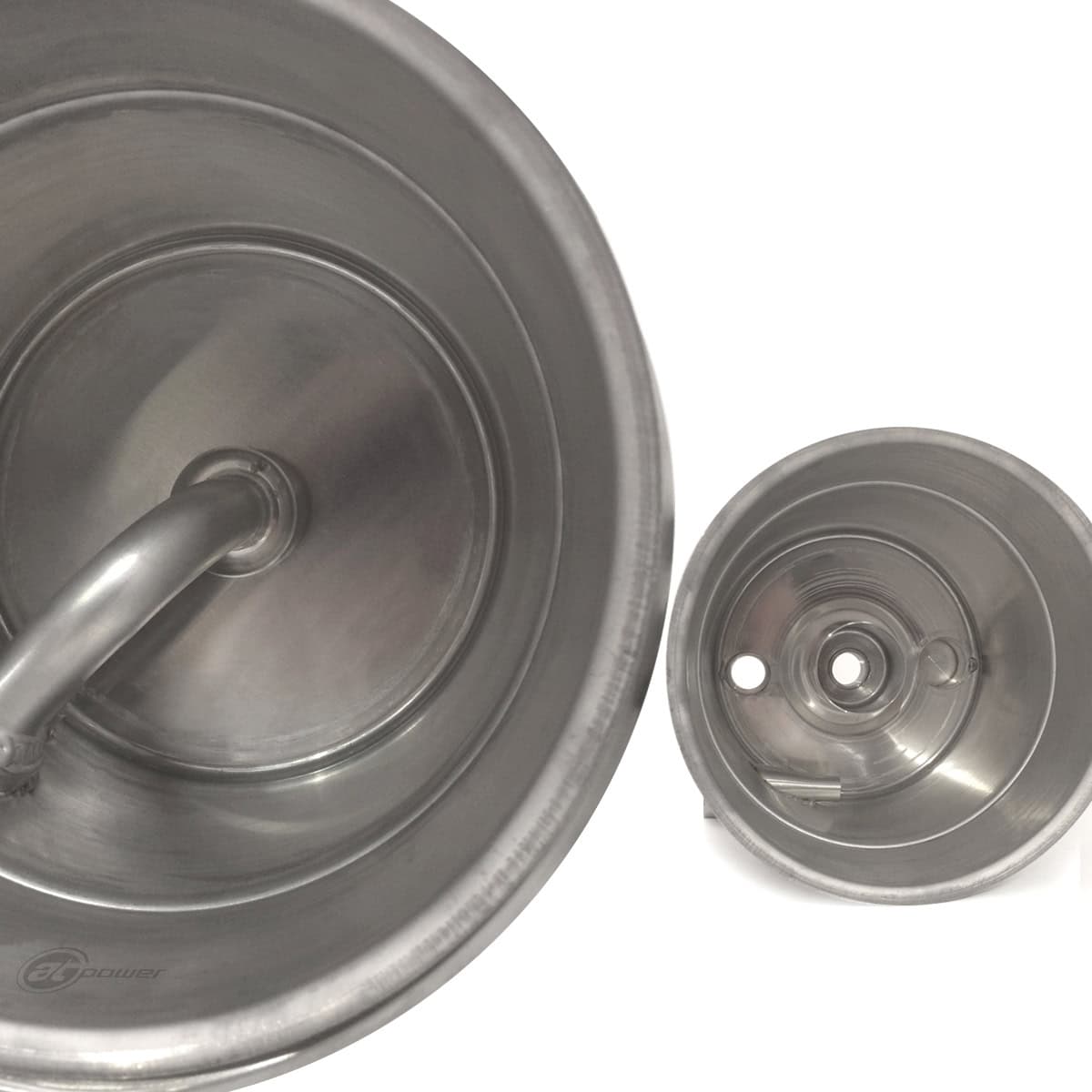

- Enhanced Oil Management: The fan-tailed oil return is angled towards the tank’s inner wall, maximising the deaerating effect. The thick-walled oil suction tube reaches the lowest point in the tank, effectively preventing oil surge.
- Dual Breath System: Each tank includes two 5/8-inch (16mm) diameter breathers – the outer connects to the rocker box (cam cover), and the inner connects to the oil catch tank, ensuring proper ventilation.
- Convenient Filling:Supplied with a 1.5-inch (38mm) internal diameter aluminium filler cap, making refills quick and hassle-free.
Dimensions:
- 5.0L Tank: 6.5-inch (175mm) maximum diameter, 14.0-inch height (15.0 inches with cap), M22 inlet and outlet.
- 7.0L Tank: Typical for Oil Tanks positioned inside the engine bay. 8.25-inch (220mm) maximum diameter, 14.0-inch height (15.0 inches with cap), JIC-16 inlet and outlet.
- 10.0L Tank: Typical for Oil Tanks positioned outside the engine bay. 9.5-inch (252mm) maximum diameter, 16.0-inch height (17.0 inches with cap), JIC-16 inlet and outlet.
These dry sump oil tanks are perfect for motorsport enthusiasts seeking reliability and performance. Enhance your racing setup with our expertly engineered solutions, ensuring your engine stays protected and operates at peak efficiency.
