Vacuum Take Off 1/8″ BSP to 5/16″ (8mm) Hosetail Fitting for Twin Throttle Housing

Vacuum Take Off 1/8″ BSP to 5/16″ (8mm) Hosetail Fitting for Twin Throttle Housing - Image 2

Vacuum Take Off 1/8″ BSP to 5/16″ (8mm) Hosetail Fitting for Twin Throttle Housing

Name: Vacuum Take Off 1/8″ BSP to 5/16″ (8mm) Hosetail Fitting for Twin Throttle Housing - AT Power
SKU: 101-117-00036
Price: 14.50 GBP
Availability: InStock

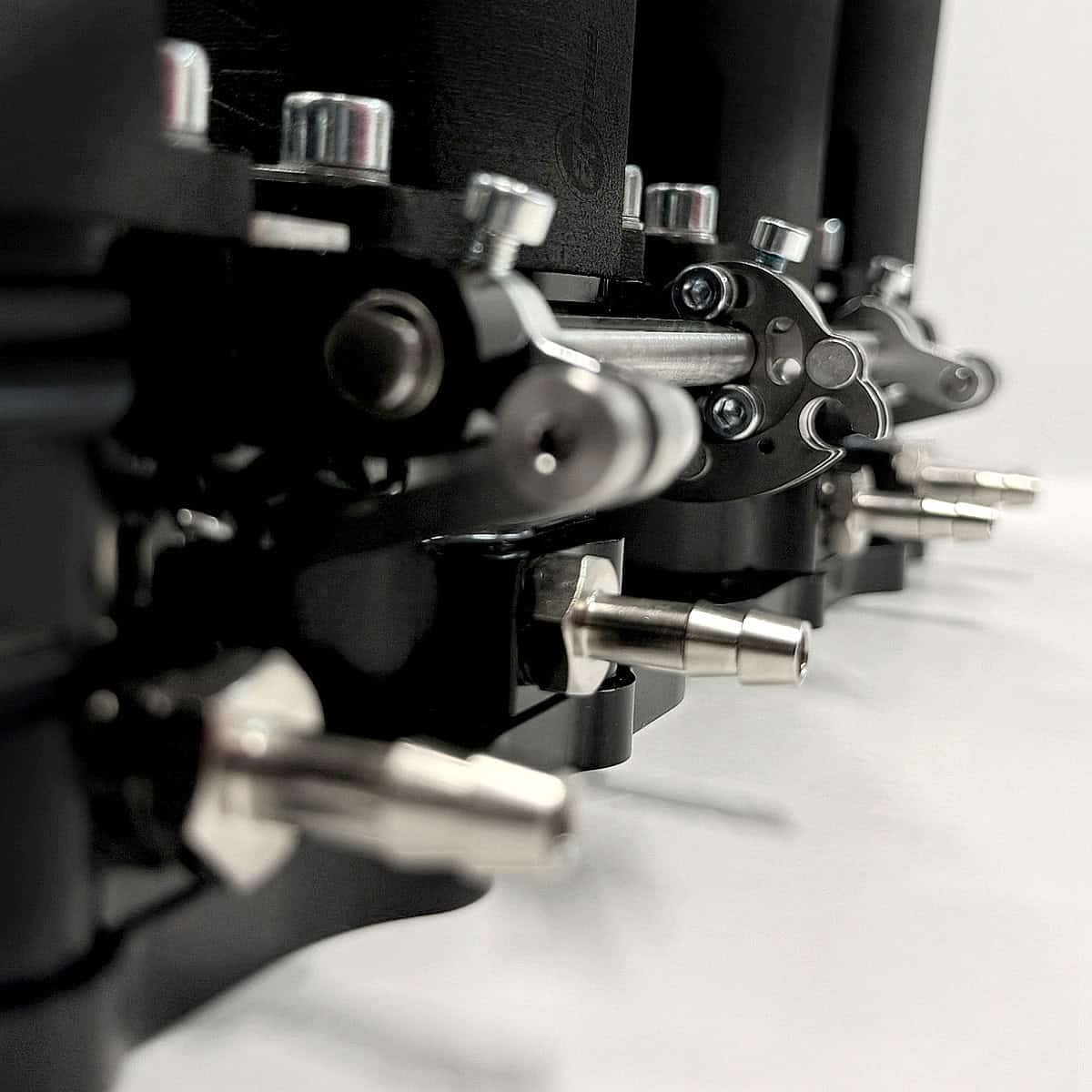

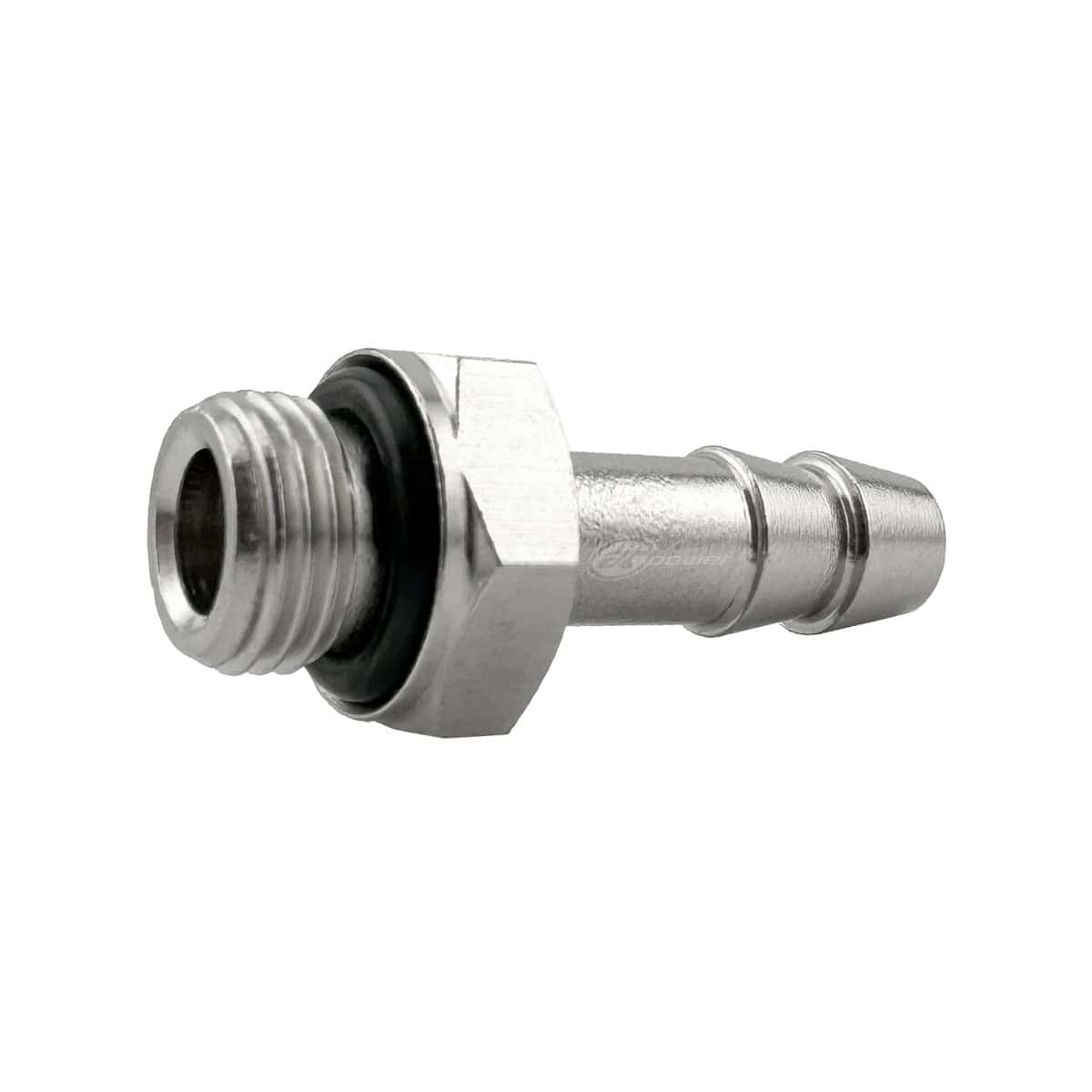

These plated brass hosetail fittings provide a perfect vacuum take-off connection between AT Power Twin Throttle Bodies and an 8mm vacuum hose.

The Direct-To-Head Throttle Bodies feature a 1/8″ BSP blind tapping, which can be drilled for vacuum readings, idle air control (IAC) or brake servo connections.

1 Hosetail fitting is required for each cylinder, eg. 4 Cylinders will need 4. 6 Cylinders will need 6.

Perfect for enhancing performance and functionality in custom setups.

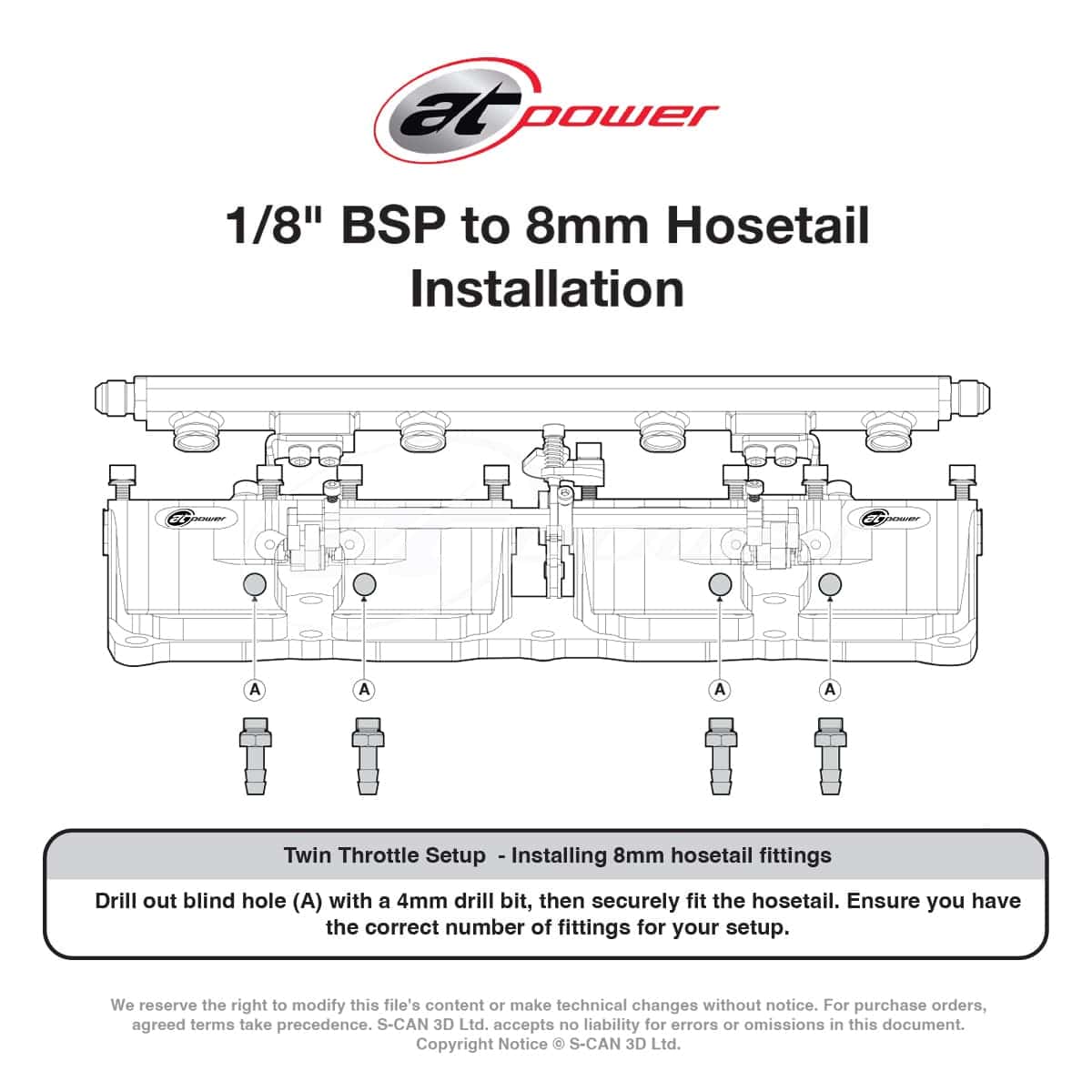

Please note: To install the 8mm hosetail fitting on your twin throttle housing, you must first use a 4mm drill to open the blind hole before fitting the hosetail. If you would like us to drill this for you, please leave a comment in the basket section.

£14.50 (exc. VAT)

MAKE AN ENQUIRY

SKU: 101-117-00036

Throttle Twin Housing – 1/8″ BSP to 5/16″ (8mm) Hosetail Fitting

These plated brass fittings offer an ideal vacuum take-off connection between AT Power’s Throttle Bodies and an (8mm) 5/16″ inner bore vacuum hose.

AT Power’s Direct-To-Head Throttle Bodies are equipped with a 1/8″ BSP blind tapping on the underside of each twin throttle body housing. This can be drilled through to create a connection point for various applications such as vacuum readings, idle air control valve (IAC) integration, or brake servo support.

Perfect for enhancing performance and functionality in custom setups.

Please note: To install the 8mm hosetail fitting on your twin throttle housing, you must first use a 4mm drill to open the blind hole before fitting the hosetail.

Please Note

To install the 8mm hosetail fitting on your twin throttle housing, you must first use a 4mm drill to open the blind hole before fitting the hosetail. If you would like AT Power to do this for you, please leave a comment at the basket stage.
