Mitsubishi EVO 4-9 Semi-Integrated Dry Sump Pan System Kit by AT Power Throttles
Price starting from £5,055.00 per unit exc. VAT
Price starting from £6,066.00 per unit inc. VAT
The AT Power Semi-Integrated Dry Sump System prevents oil starvation during high-G racing, lowers oil temperatures, and unlocks additional horsepower.
Key Features:
- No additional belt drive required
- 3-Stage Oil Pump
- Externally adjustable pressure relief valve (PRV) for easy tuning
- Billet-machined low-profile oil pan, turbo drain features
- Reduces oil drag for more power and efficiency
- Compatible Design: Uses OEM belt drive, eliminating external drive belts
! This product has been tested up to a maximum of 8,000 RPM (Making 800hp). Exceeding this limit will void your warranty !
Installation & Ordering: Exhaust modification required for oil pump clearance.
Professional installation required. Failure to install this product correctly will cause damage to your engine and void warranty.

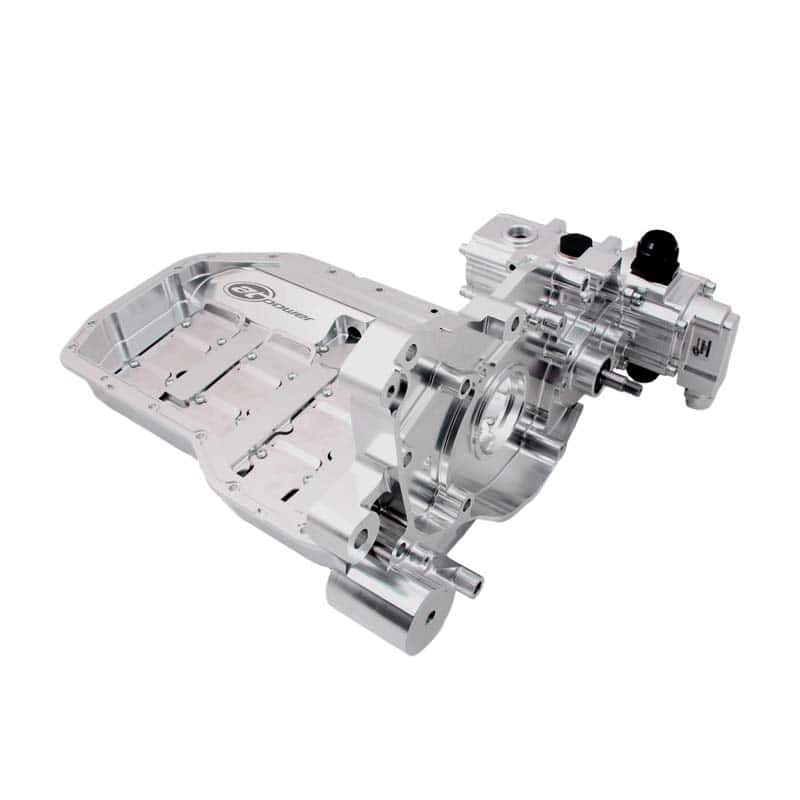

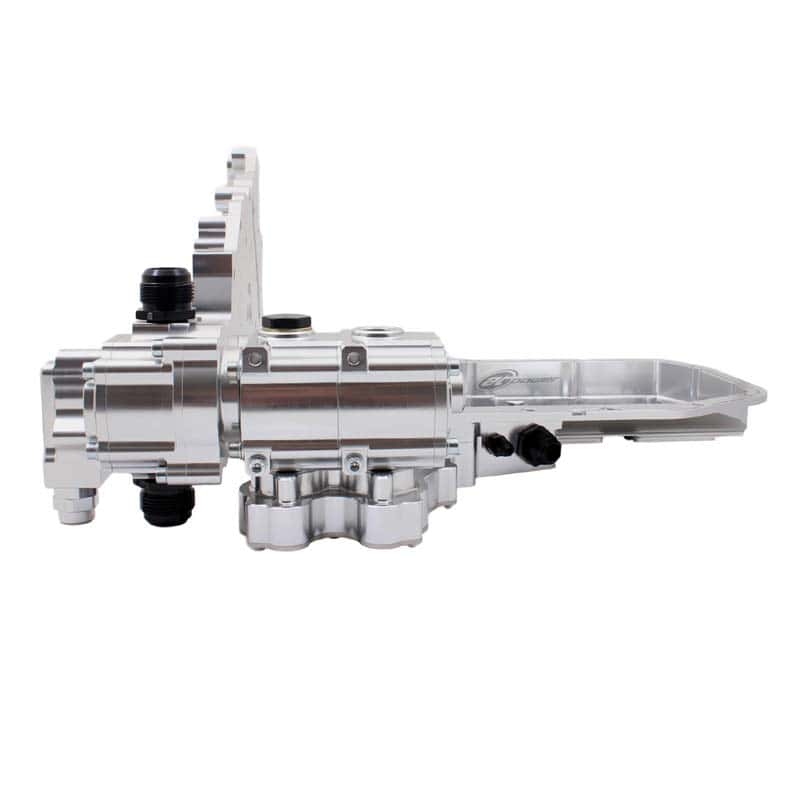

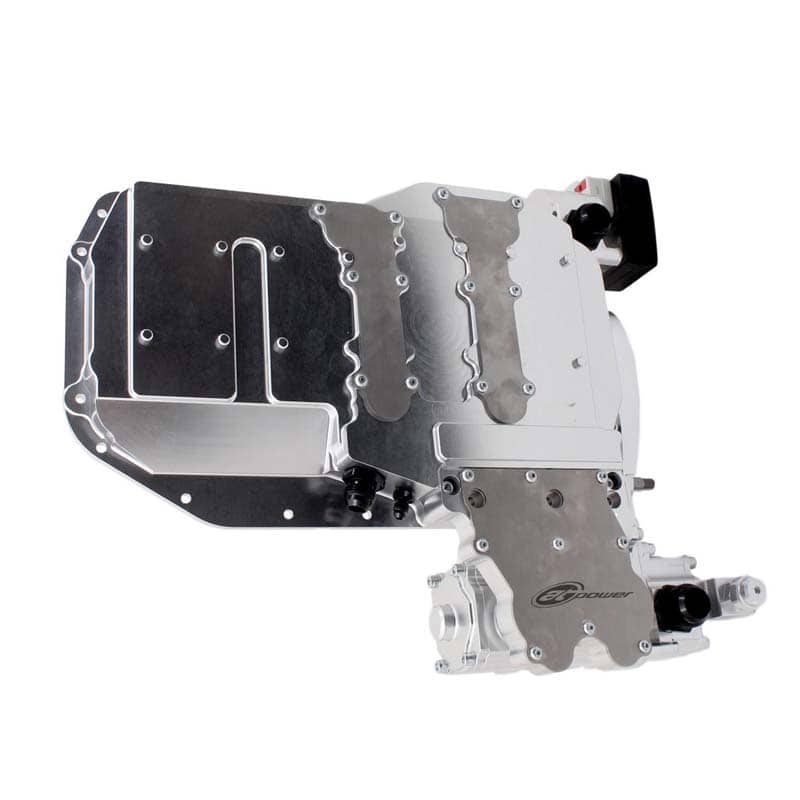

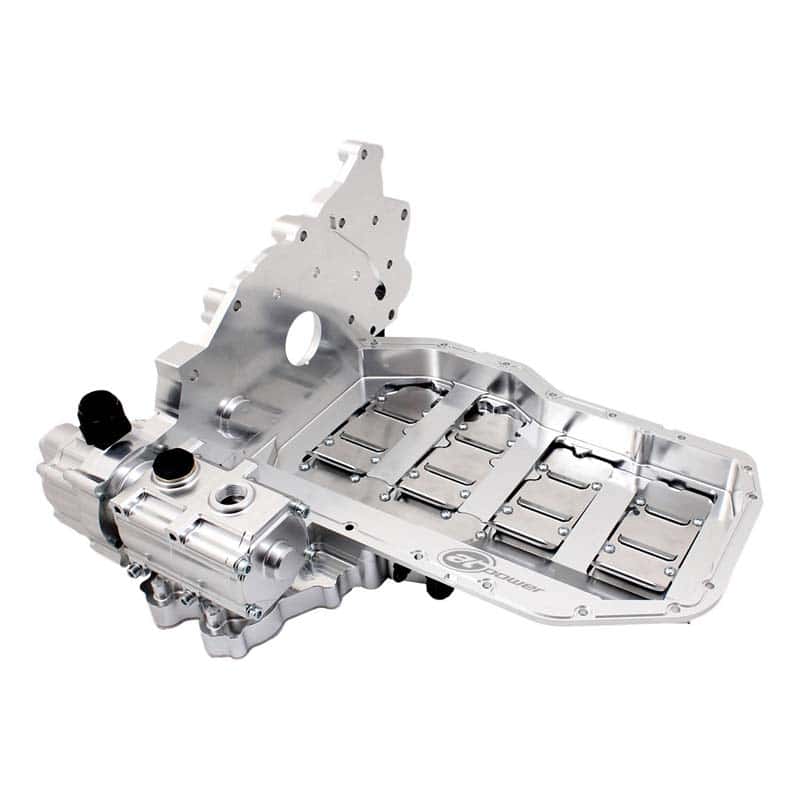

Mitsubishi EVO 4-9 Semi-Integrated Dry Sump System
The AT Power Mitsubishi Semi-Integrated Dry Sump System is engineered to prevent engine oil starvation (surge) caused by extreme G-forces during race conditions. This system reduces engine oil temperatures and unlocks additional horsepower potential, making it an essential upgrade for serious racers.
Integrated High-Efficiency Oil Pump System
Featuring a high-efficiency 3-stage dual-ported Oil Pump with positive displacement G-rotors, this system efficiently supplies pressurised oil into the engine while simultaneously removing aerated oil from the sump pan and returning it to a remote oil tank. This increases overall oil supply capacity and ensures consistent lubrication under high-performance conditions.
Unlike traditional belt-driven setups, this integrated design removes the need for external belts – eliminating front-end packaging issues and the risk of belt failure.
Optimised Crankcase Pressure & Oil Flow
Integrated scavenge pumps efficiently extract aerated oil directly from the sump pan into a remote tank:
- Utilises the OEM Oil Pump belt drive system, eliminating the need for external drive belt
- Reduces crankcase pressure and piston resistance
- Improves horsepower output and oil circulation
Easier Installation
Featuring fully integrated scavenge galleries, the system reduces reliance on vulnerable external oil lines and fittings – minimising leak risks, additional installation costs and installation time. This is a motorsport-grade component and must be installed by a qualified motorsport professional. The compact design eliminates front-end packaging issues in the engine bay and removes the risk of auxiliary drive belt failure. If you are unsure, we strongly advise that all mechanical and safety-critical work be carried out by a certified expert.
The standard exhaust system will require modifications to provide clearance around the oil pump.
S-CAN 3D accepts no liability for damage resulting from improper installation or misuse. For support or guidance, please contact the AT Power sales team.
The Unit Includes:
- Billet-machined low-profile sump pan with turbo drain feature

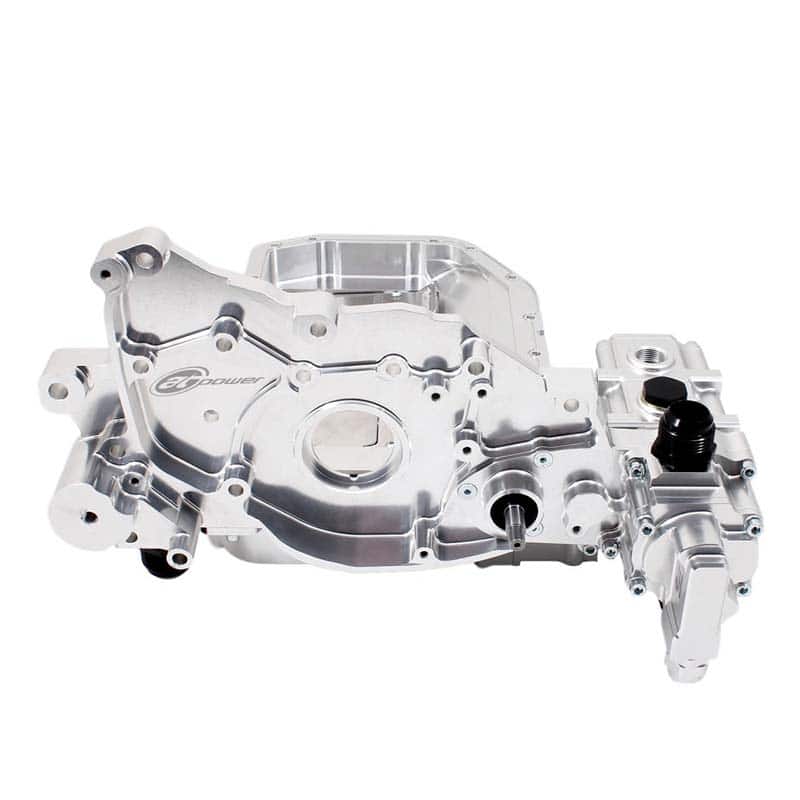

- Front cover and integrated 3-stage dual-ported billet-machined oil pump.
- Externally accessed pressure relief valve (PRV) for easy tuning and adjustment.
- Compatible with oil coolers to further reduce temperatures and extend engine durability.
Field-Tested Performance

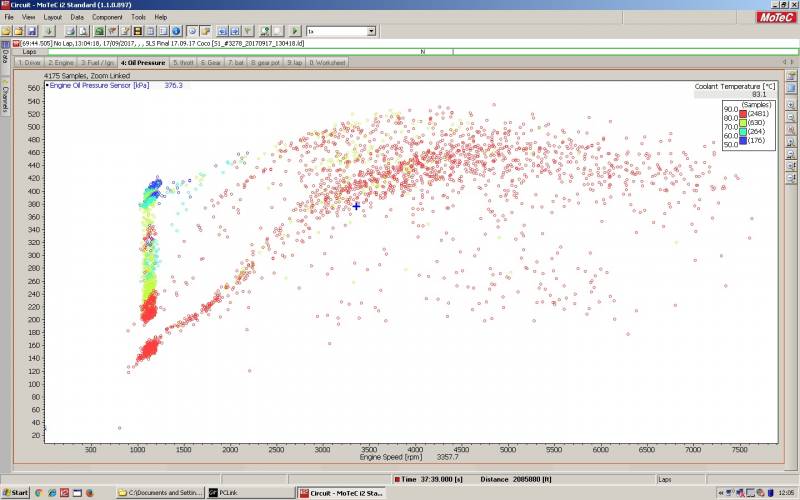

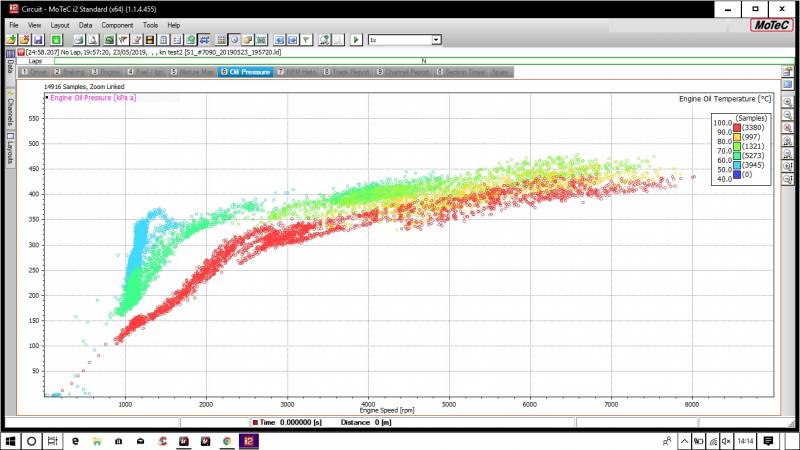

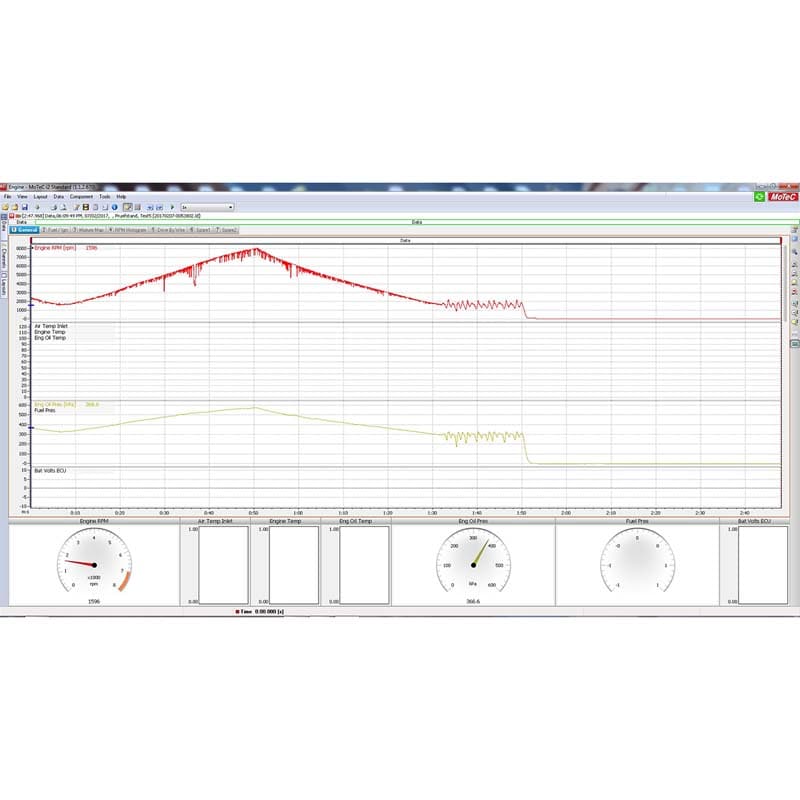

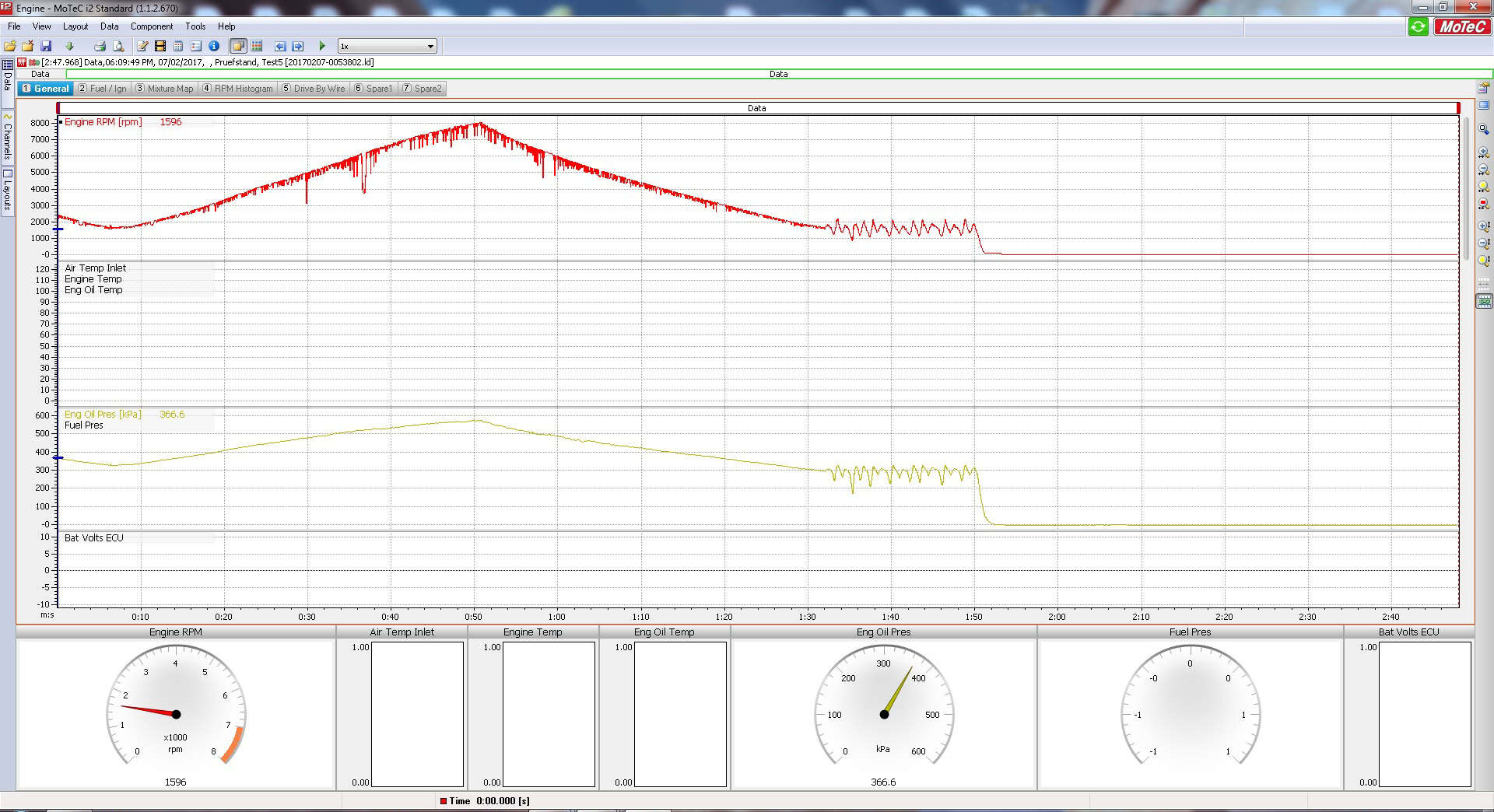

This system has been rigorously tested on a Mitsubishi EVO 2.3L Stroker race car, operating up to 8000 RPM and delivering 800 HP with 550 ft-lbs of torque. Dyno-tested under extreme conditions before being used in competitive time attack races. Oil pressure remained stable throughout the rev range, with 580 kPa (84 PSI) recorded at 8000 RPM.
After extensive field testing, a full teardown inspection showed no visible or measurable wear to any component parts.
Designed to withstand up to 10,000 RPM (not yet tested at this limit).
Complete Your Build:
We also offer dry sump oil tanks, oil pump fittings, and other essential accessories for a seamless installation.
Whether you’re building a track car, time attack machine, or a competitive race vehicle, AT Power’s Semi-Integrated Dry Sump System delivers world-class performance with simplified installation.
If you require something more bespoke, please contact us.
Motorsport Use Only! This product is designed for professional motorsport applications and must be installed by a qualified technician. If assistance is required, please contact AT Power’s sales team.
Important
This product has been tested up to a maximum of 8,000 RPM.
Do not exceed this limit, as doing so will void your warranty. Incorrect installation of this product may result in engine damage. S-CAN 3D accepts no liability for damage resulting from improper installation or misuse. For support or guidance, please contact the AT Power sales team.
Motorsport Use Only! This is a motorsport-grade component product designed for professional motorsport applications and must be installed by a qualified technician. If you are unsure, we strongly advise that all mechanical and safety-critical work be carried out by a certified expert.
Anodised Finishes:
Our anodising has a gloss finish. Kindly note that the colour swatches or photoshopped images are intended for guidance only. Variations in colour and finish may occur due to the inherent nature of the anodising process and its suitability. Additionally, printed materials and on-screen displays may differ in shade. View our anodising colour examples here.
Returns and Cancellations:
This product is classified as ‘Configured’ as it is made to order. Please note that different terms apply to cancellations and refunds for Configured products. You can find more information, clicking here.
Delivery / Lead Time
This Configured product is made to order:
- Standard dispatch time is approximately 4-5 weeks from receipt of payment.
Please note that this timeframe is a guideline and is not guaranteed.
If purchased with other items:
- Dispatched based on the item with the longest lead time in your order.
Postage and Shipping Costs:
Shipping costs are automatically calculated at the checkout after you enter your delivery address.
For sales, please see our Terms & Conditions.
