Suzuki Hayabusa 45mm Single Injection Gen 2 Bike Direct-To-Head Shaftless EFI Individual Throttle Bodies (ITBs)
Price starting from £1,265.00 per unit exc. VAT
Price starting from £1,518.00 per unit inc. VAT
45mm direct-to-head EFI single-injection ITBs for Suzuki Hayabusa Gen-2 (2007–2020). Billet aluminium with shaftless butterfly design for improved airflow, throttle response, and performance. Fits four aftermarket injectors.
Compatible Engines:
- Suzuki GSX-1300R Hayabusa 1300R-K8 (2008)
- GSX-1300R K9 (2009)
- GSX-1300R Models K7-K20 (2007-2020)
Technical Drawings below in Documents
Professional installation, ECU compatibility and Tuning required. Failure to install this product correctly will cause damage to your engine and void warranty.

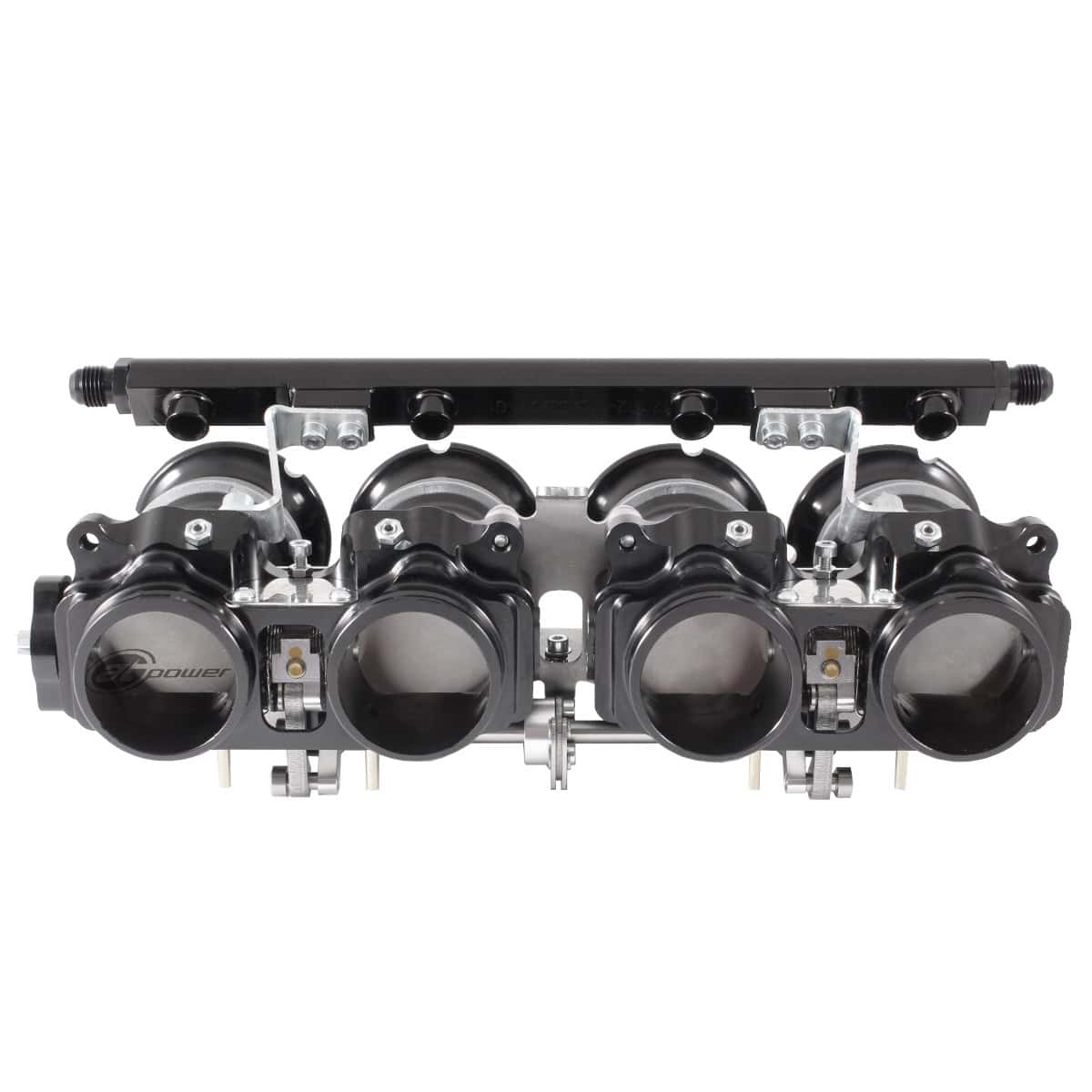

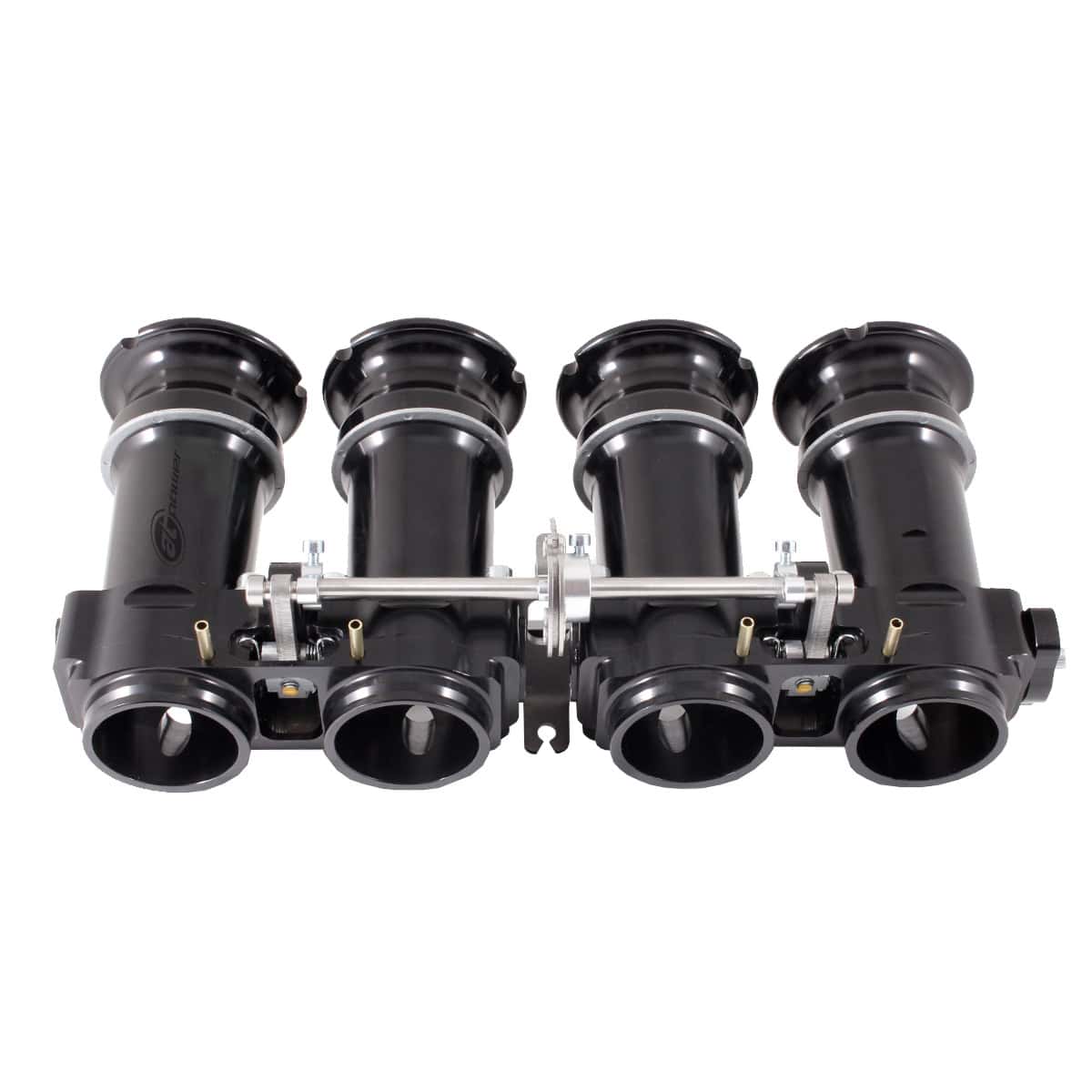

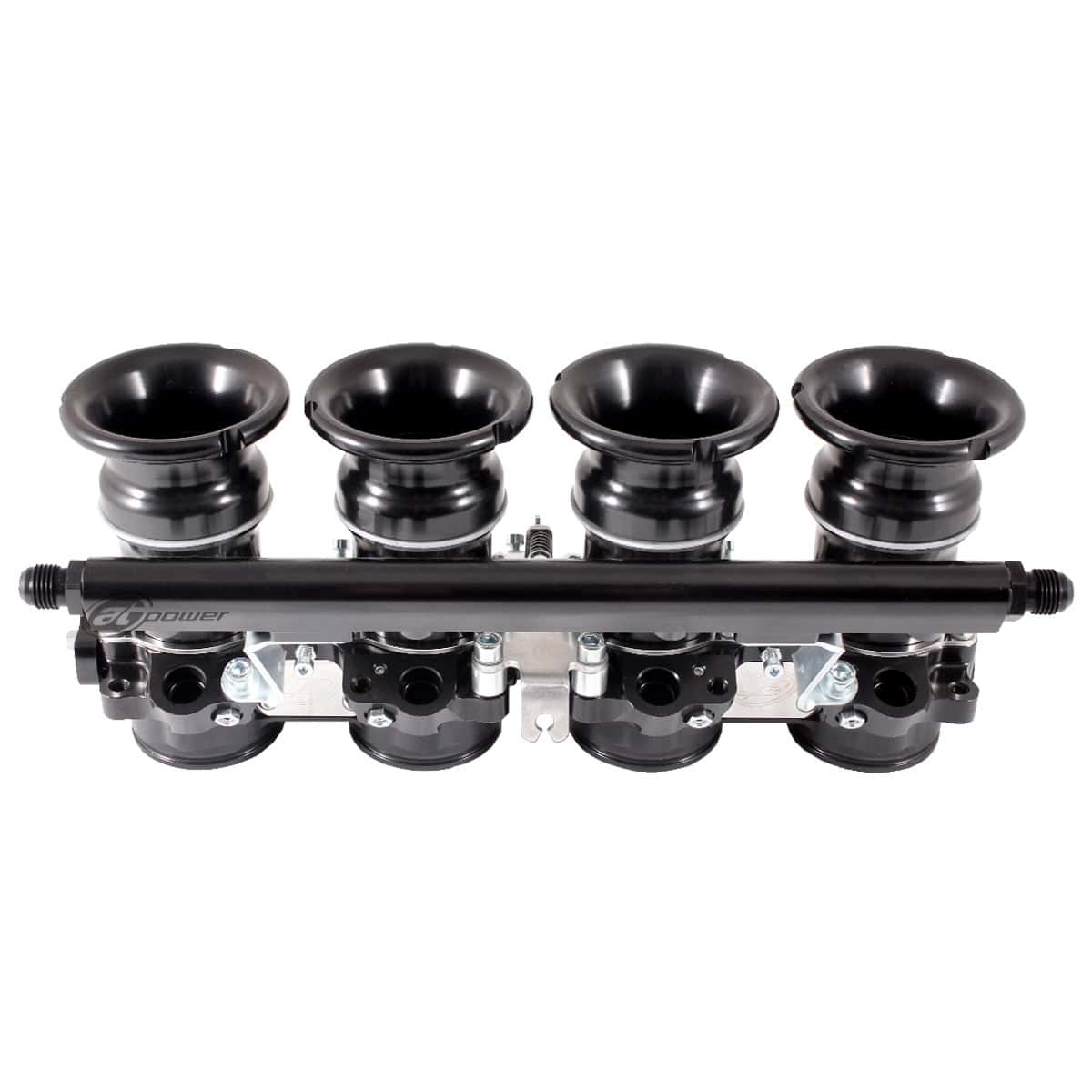

Suzuki Hayabusa Gen-2 45mm EFI Individual Throttle Bodies (Single Injection)
These Direct-to-Head (DTH) 45mm twin housing shaftless throttle bodies (ITBs) are engineered for Suzuki Hayabusa Gen-2 engines (2007–2020), including 1300R-K8 (2008), GSX-1300R-K9 (2009), and later K models. Designed to match the OEM cylinder port spacing and intake profile, they utilise four aftermarket fuel injectors (available separately) for enhanced fuelling capacity.
Machined from lightweight billet aluminium, these ITBs feature AT Power’s patented shaftless butterfly technology and knife-edged valves, delivering improved induction airflow, sharper throttle response, and increased engine performance.
Compatible Engines:
- Suzuki GSX-1300R Hayabusa 1300R-K8 (2008)
- GSX-1300R K9 (2009)
- GSX-1300R Models K7-K20 (2007-2020)
While similar engine may share architecture, port shapes and spacing can vary. Check the technical drawings matches your inlet ports.
Key Features & Benefits:
- Precision Fitment: Ideal for stock and power-built engines for optimal airflow and ease of installation.
- Shaftless Technology: Patented Shaftless butterfly valve design improves air velocity by 10% and throttle response by eliminating the central throttle shaft obstruction.
- Twin Billet Housings: CNC-machined from high-grade billet aluminium for superior strength, durability, and reduced weight.
- Fully Assembled, Ready to Install: Delivered pre-assembled for direct bolt-on installation to the cylinder head intake face.
- 45mm Bore Dimeter: Designed to maximise performance.
Product Details:
- Aerospace Grade Billet Aluminium patented “Shaft-less” 45mm Throttles
- 70mm Aluminium Extensions (Runners)
- 40mm Open Aluminium Ram Pipes (trumpets)
- Centre Cable Pull Linkage
- JIC-6 AN6 Male Fittings supplied
Performance Advantages:
- Increased horsepower and torque
- Lightweight and durable
- Sharper throttle response and increased engine performance
- Perfect for naturally aspirated and boosted applications
- Ideal for motorsport applications, track day builds, race cars or high-performance engine builds and street setups
If you require something more bespoke, please contact us.
Complete your build. Sold Separately:
- AirFlow Synchrometer here.
- Megaflow Air Filter JC50/S/65 or JC50/S/100 here if 60mm Ram Pipes are used.
- 3m Motorsport Cable here.
- Pico Fuel Injectors – 1 per Cylinder here.
Important:
- ECU Compatibility and Tuning Required: Proper engine management system tuning is necessary for optimal operation and fuelling.
- Maps are supplied “as-is”. Professional dyno tuning is strongly recommended to ensure optimal performance and avoid potential engine damage.
If you require something more bespoke, please contact us.
Motorsport Use Only! This product is designed for professional motorsport applications and must be installed by a qualified technician. If assistance is required, please contact AT Power’s sales team.
Important
Ordering
Before placing your order, please ensure that the technical drawings match your engine’s inlet ports and that the throttle bodies will fit correctly, as engine specifications may vary or have been modified.
Anodised Finishes:
Our anodising has a gloss finish. Kindly note that the colour swatches or photoshopped images are intended for guidance only. Variations in colour and finish may occur due to the inherent nature of the anodising process and its suitability. Additionally, printed materials and on-screen displays may differ in shade. View our anodising colour examples here.
Returns and Cancellations:
Our Throttles are classified as ‘Configured’ products, as they are made to order. Please note that different terms apply to cancellations and refunds for configured items. You can find more information, clicking here.
Installation:
- ECU Compatibility and Tuning Required: Proper engine management system tuning is necessary for optimal operation and fuelling.
- Maps are supplied “as-is”. Professional dyno tuning is strongly recommended to ensure optimal performance and avoid potential engine damage.
Incorrect installation of this product may result in engine damage.
This is a motorsport-grade component and must be installed by a qualified technician. If you are unsure, we strongly advise that all mechanical and safety-critical work be carried out by a certified expert.
S-CAN 3D accepts no liability for damage resulting from improper installation or misuse. For support or guidance, please contact the AT Power sales team.
Delivery / Lead Time
This Configured product is made to order:
- Standard dispatch time is approximately 8-9 weeks from receipt of payment.
Please note that this timeframe is a guideline and is not guaranteed.
If purchased with other items:
- Dispatched based on the item with the longest lead time in your order.
Postage and Shipping Costs:
Shipping costs are automatically calculated at the checkout after you enter your delivery address.
For sales, please see our Terms & Conditions.
